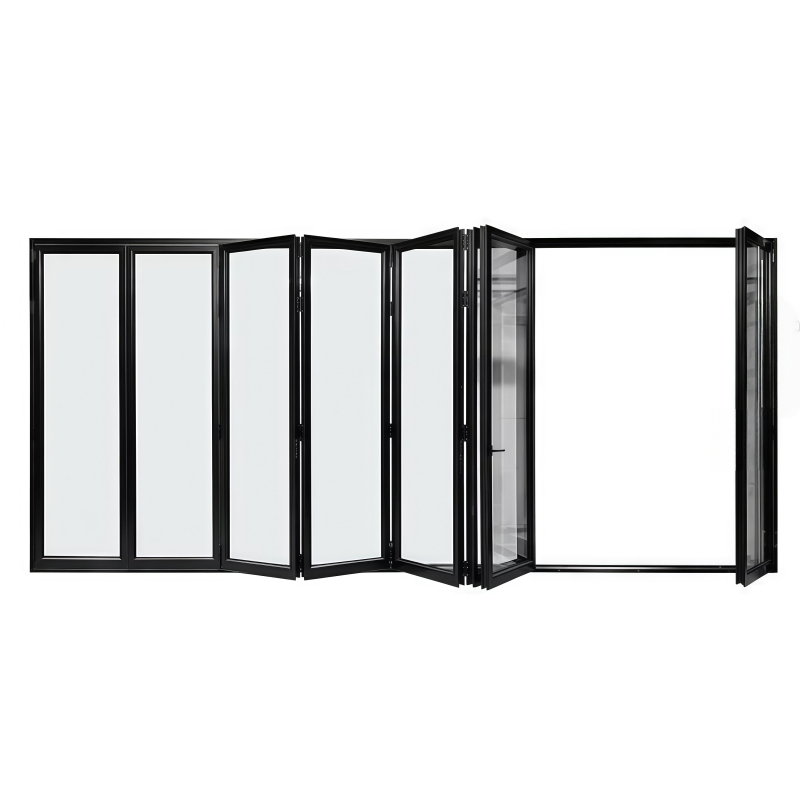

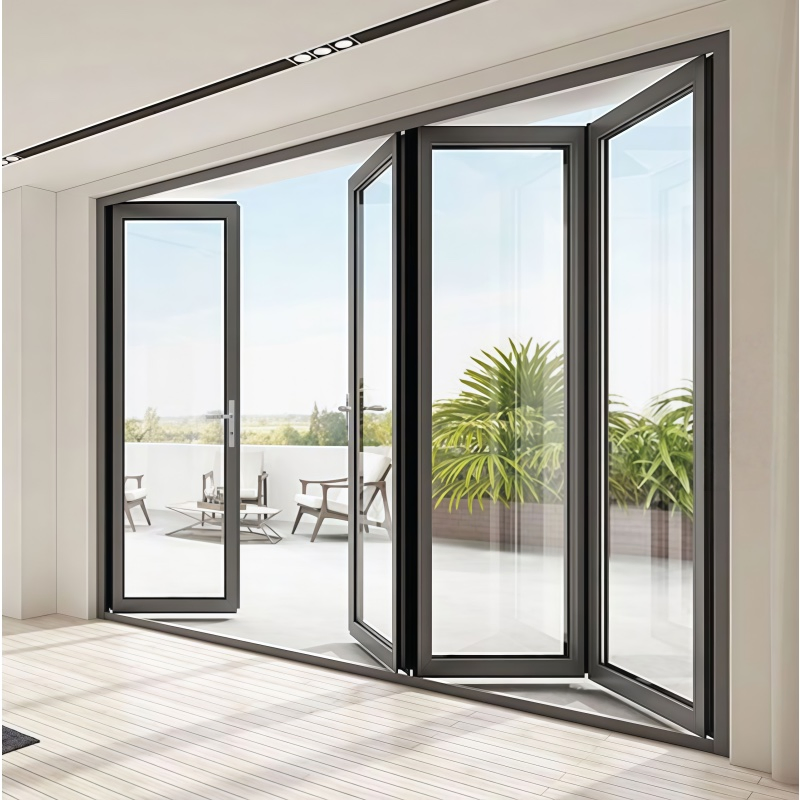

Aluminium Slim Frame Soundproof Insulated Glass Aluminum Folding Door for Living Room & Patio

Still deciding? Get samples of $ !
Request Sample

Product Description

Technical Specifications
Model NO.
Folding Door
Material
Aluminum Alloy
Style
Modern
Open Style
Folding
Sound Insulation
45 dB
Position
Exterior
Security Rating
A
Surface Finishing
Finished
Glass
Tempered
Advantage
Heat Insulation
Schüco Folding Sliding System ASS 70 FD and ASS 80 FD.HI

The optimised folding sliding systems offer additional design options thanks to the opening type with 90° corner including a flat, thermally insulated floor threshold. An elegant feature retaining catch with a corresponding flat door handle is also new as an additional option.

An integrated structural expansion profile for system-based compensation for ceiling deflections completes the folding sliding systems which are smooth and easy to operate – an impressive solution for commercial projects and luxury homes.

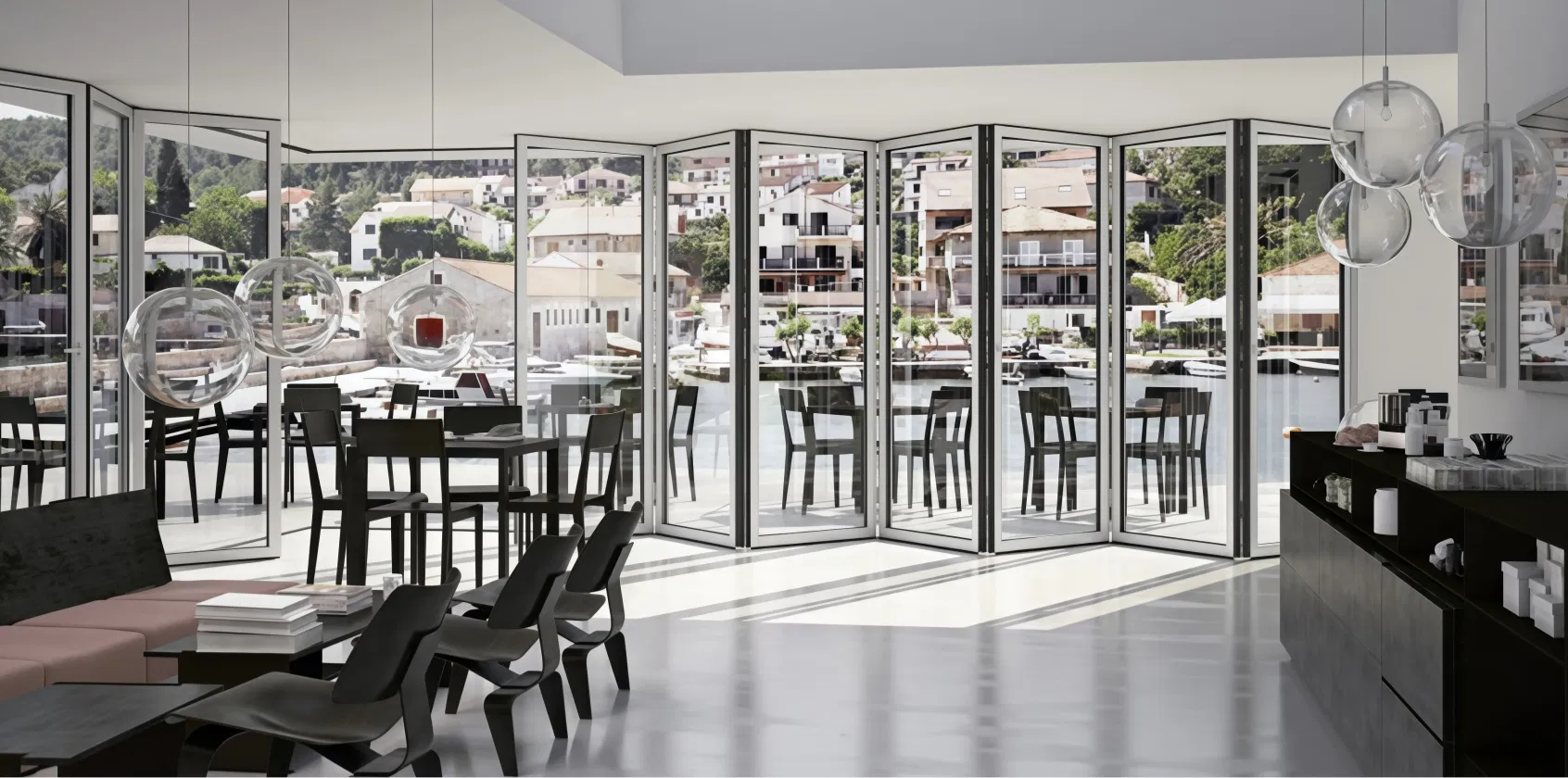

Folding Door System Overview
Key System Advantages
🛡️ Investment Security
  • New flat threshold with watertightness
  • 90° corner for design freedom
  • Attractive system for luxury homes
  • Tests in accordance with European and AAMA standards
📐 Planning Benefits
  • Unit heights up to 3.5 m
  • Handle-free system solution
  • Floor-to-ceiling glazing units
  • Wide selection of opening types
🔧 Fabrication Benefits
  • Simplified installation on site
  • Fast cleaning and maintenance of rollers
  • Easy to fabricate components
  • Reduced number of individual parts
Advanced Threshold & Structure

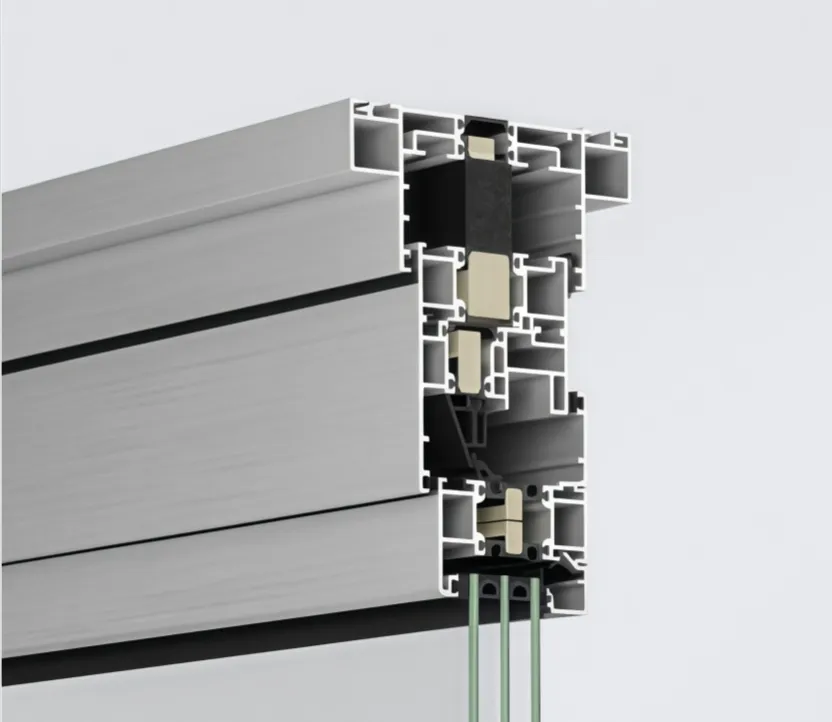

Easy-access threshold

Watertight Threshold (300Pa)

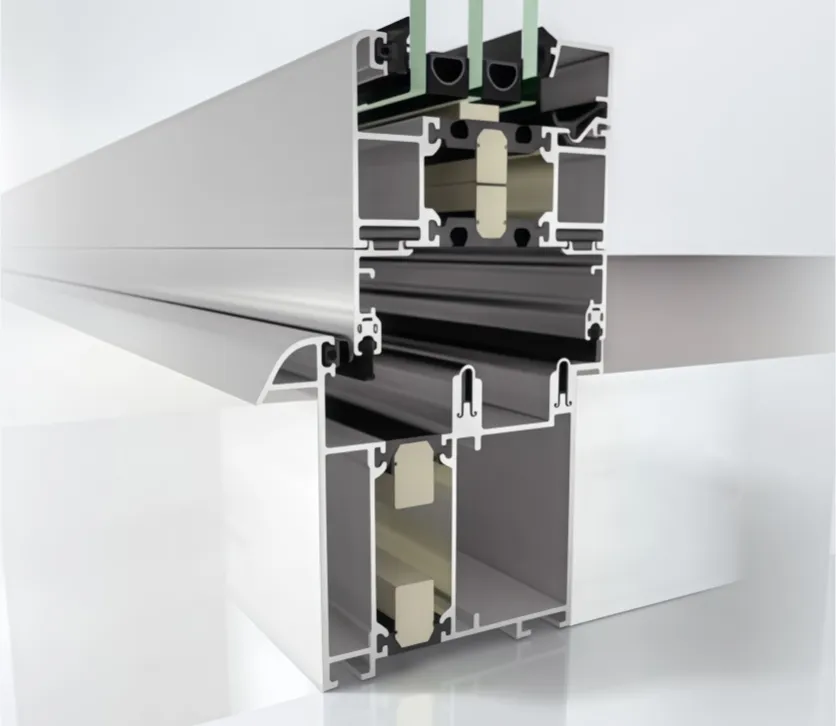

System profile expansion

Structural Expansion Profile

Design Details

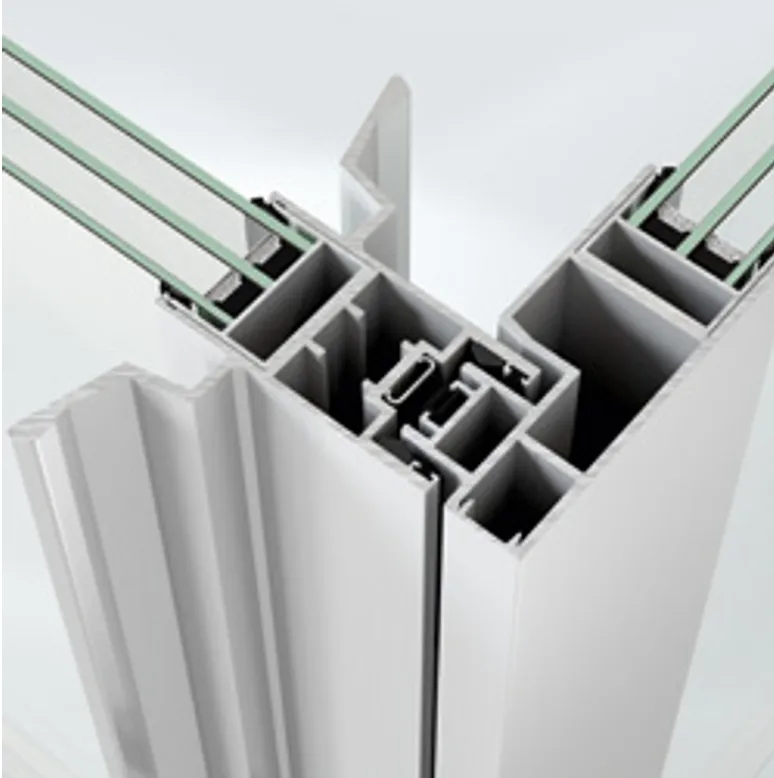

90 degree corner detail

Interlocking 90° corner with integrated pull grip

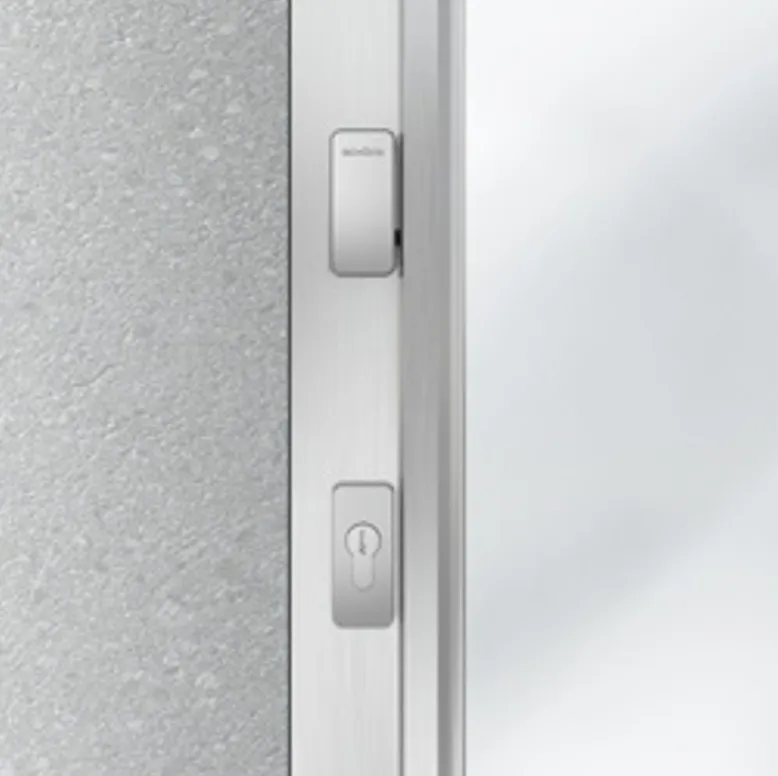

Operating lever

Concealed operating lever with additional locking

Sustainability & Innovation

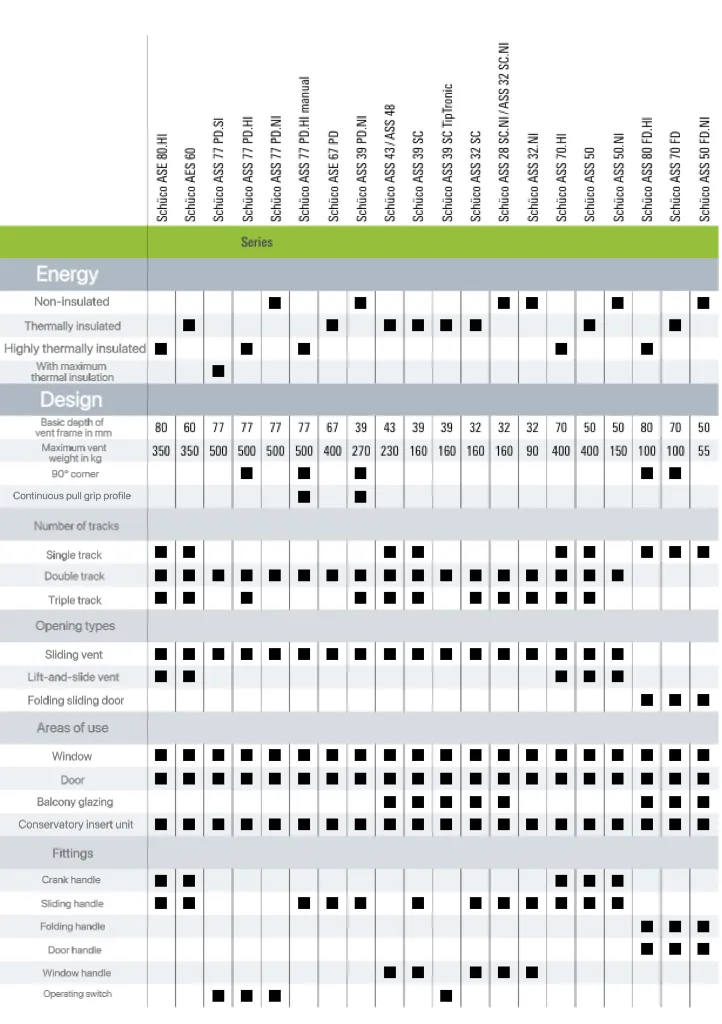

Showroom Display

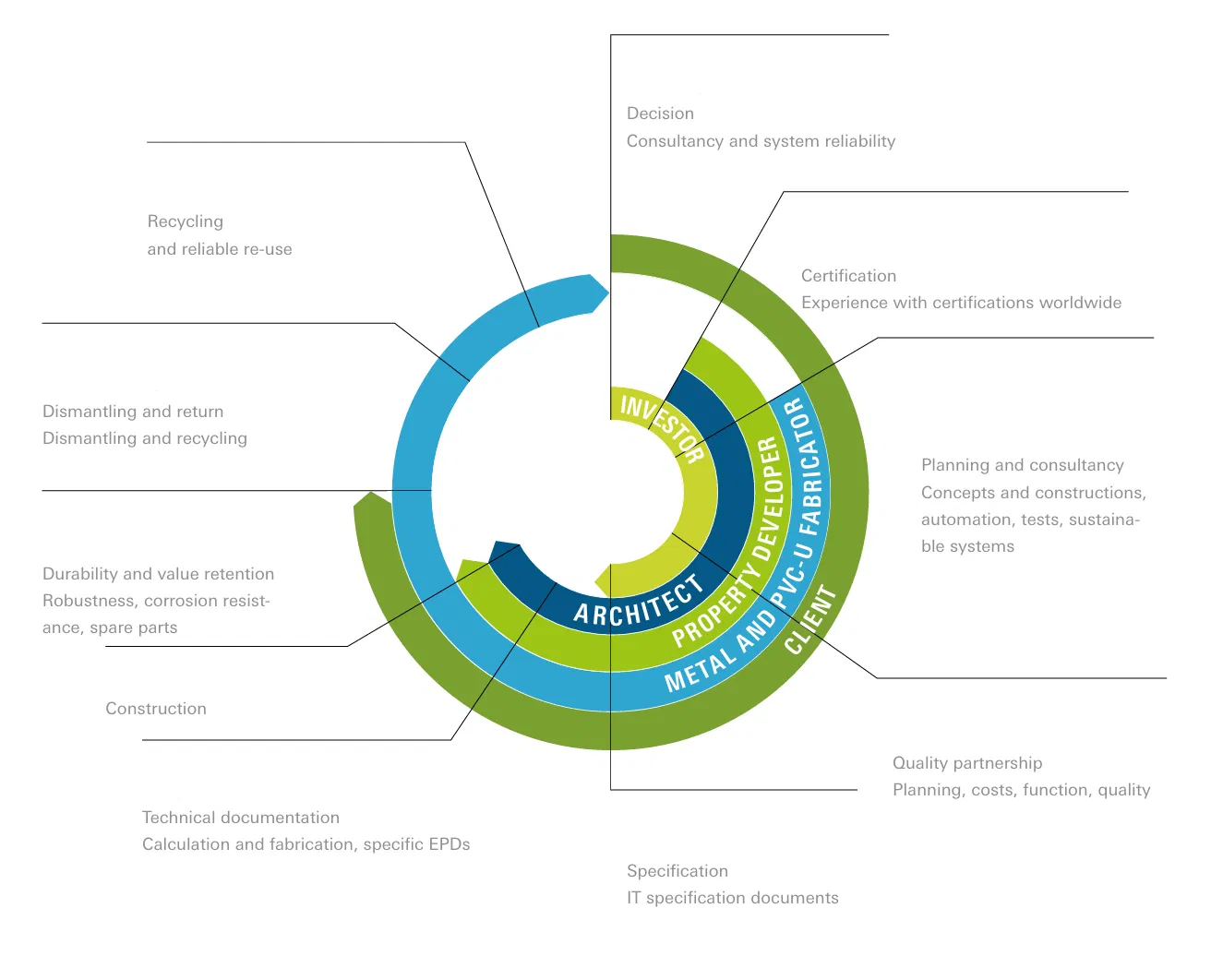

360° Sustainability: The approach comprises the whole lifecycle of a product from design to manufacture. Aluminium systems are almost 100% recyclable, contributing towards international climate targets. We ensure construction projects are economical and resource-friendly.

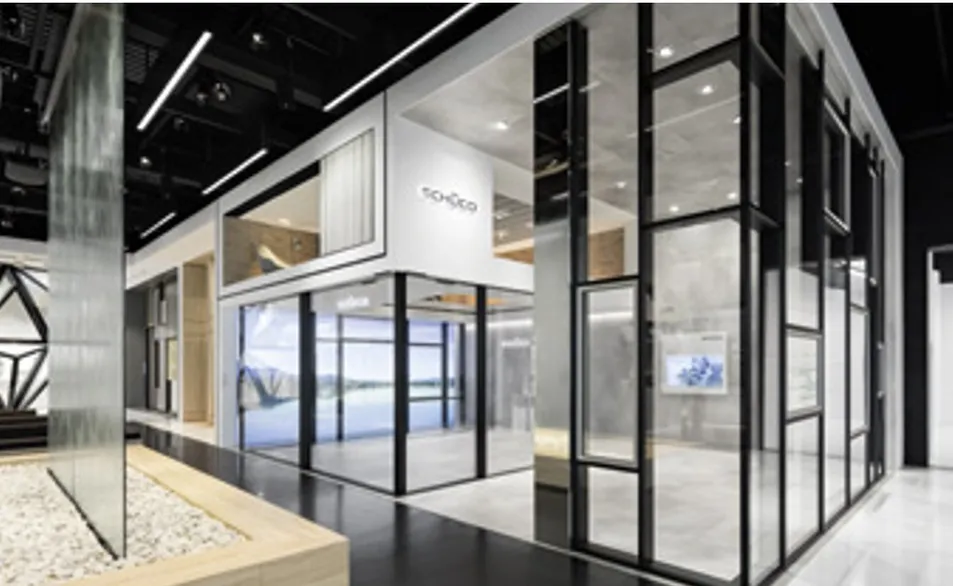

Detail 1

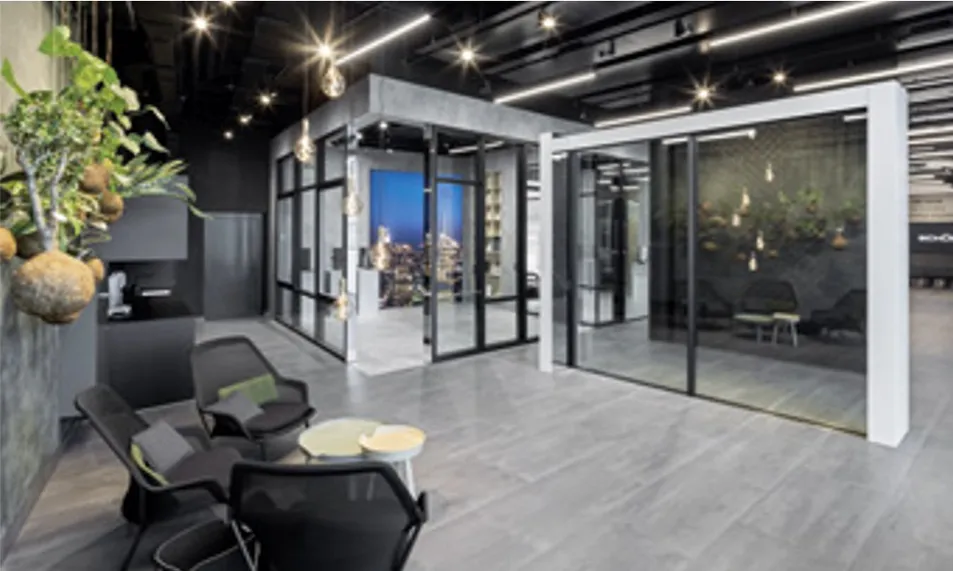

Detail 2
System View
Product Presentation Video
Frequently Asked Questions
What is the maximum height for these folding doors?
The system allows for unit heights of up to 3.5 meters, providing design flexibility for floor-to-ceiling glazing.
How effective is the sound insulation?
The system provides a sound insulation rating of 45 dB, making it ideal for both residential and commercial exterior applications.
Is the threshold suitable for easy-access requirements?
Yes, the system features a new flat, thermally insulated floor threshold that provides easy access while maintaining a 300Pa watertightness rating.
Are the aluminum materials environmentally friendly?
Absolutely. Our aluminum systems are almost 100% recyclable and part of a 360° sustainability lifecycle approach to reduce CO2 emissions.
Can I have different colors for the interior and exterior?
Yes, the system supports a wide range of colors, with the possibility of having different colors on the outside and inside to match your decor.
How is maintenance handled for the sliding rollers?
The design allows for simple and fast cleaning and maintenance of the rollers without the need to remove the entire vent.
