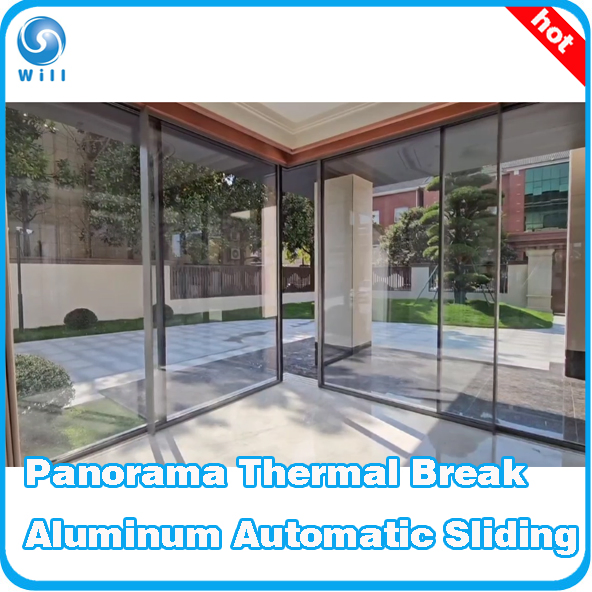

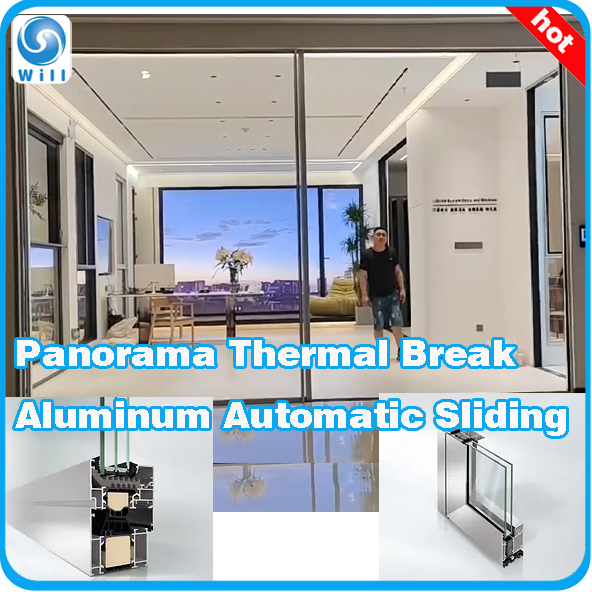

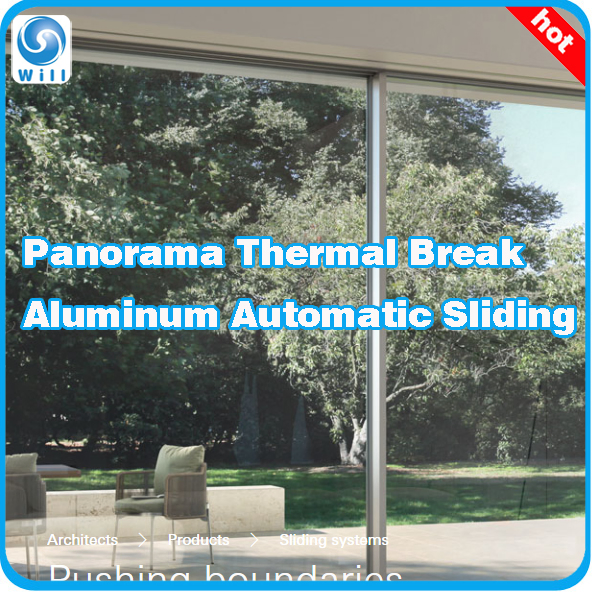

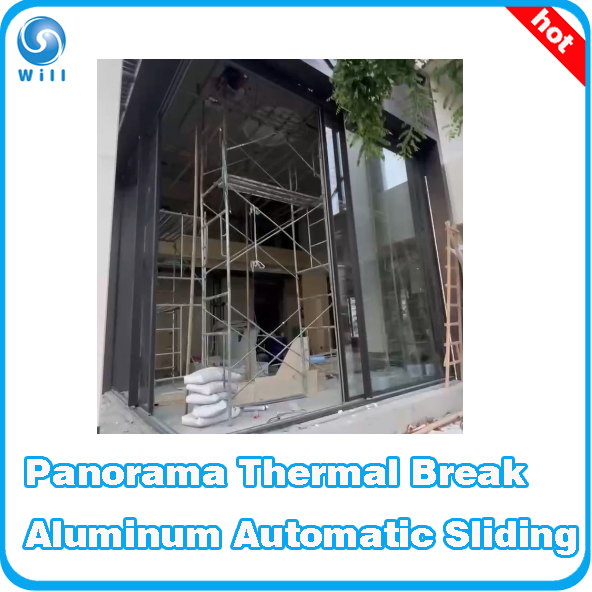

Automatic Panorama Thermal Break Aluminum Door
Automatic Panorama Thermal Break Aluminum Door
Automatic Panorama Thermal Break Aluminum Door
Automatic Panorama Thermal Break Aluminum Door
Automatic Panorama Thermal Break Aluminum Door
1 / 5
Automatic Panorama Thermal Break Aluminum Door
Automatic Panorama Thermal Break Aluminum Door
Automatic Panorama Thermal Break Aluminum Door
Automatic Panorama Thermal Break Aluminum Door
Automatic Panorama Thermal Break Aluminum Door

Automatic Panorama Thermal Break Aluminum Door

Customization: Available
Warranty: 36monthes
Material: Aluminum Alloy
Send Inquiry

Product Description

Basic Product Information

Model NO.
Automatic Panorama Thermal Break Aluminum Door
Type
Sliding
Open Style
Sliding
Opening Type
Induced
Special Function
Soundproof
Color
White
Certification
CCC, ISO9001
Position
Room
Surface Finishing
Finished
Motor
Dunkermotoren Germany
Power Supply
220V or 110V
Model
SLA60
Production Capacity
2000sets Every Month
Transport Package
Carton with Film

Packaging & Delivery

Package Size
220.00cm * 125.00cm * 10.00cm
Package Gross Weight
45.000kg

Product Description

Panorama thermal break aluminum door air tight hermetical Wind Load Resistance sliding door

Automatic Door 1

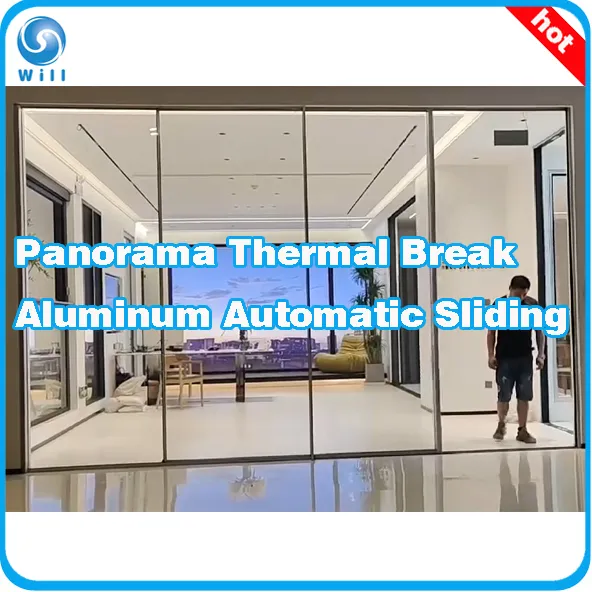

Automatic Door 2
Automatic Door 3

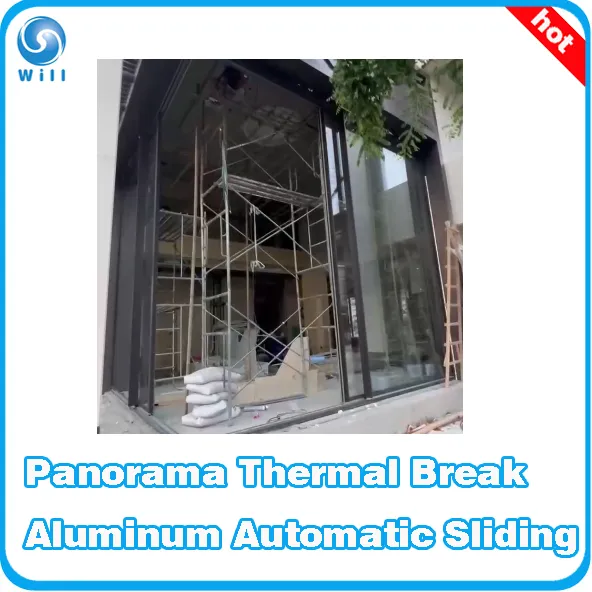

Automatic Door 4
Automatic Door 5

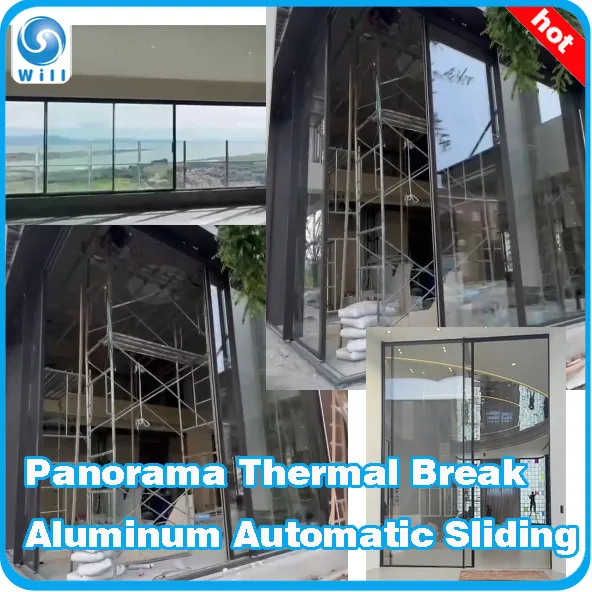

Automatic Door 6

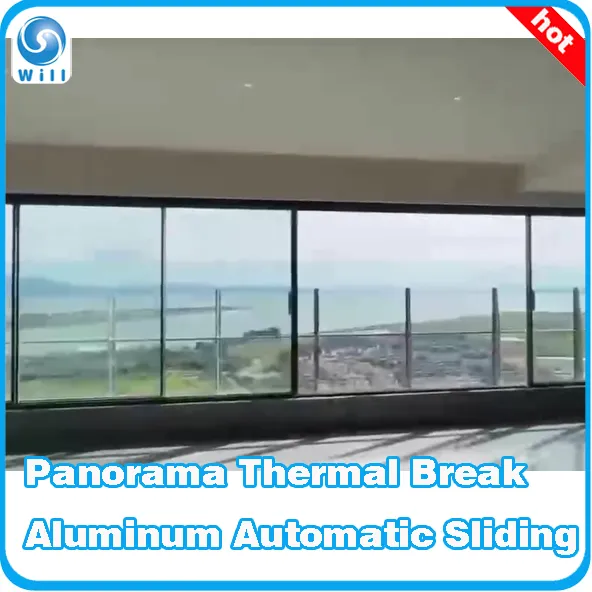

Automatic Door 7

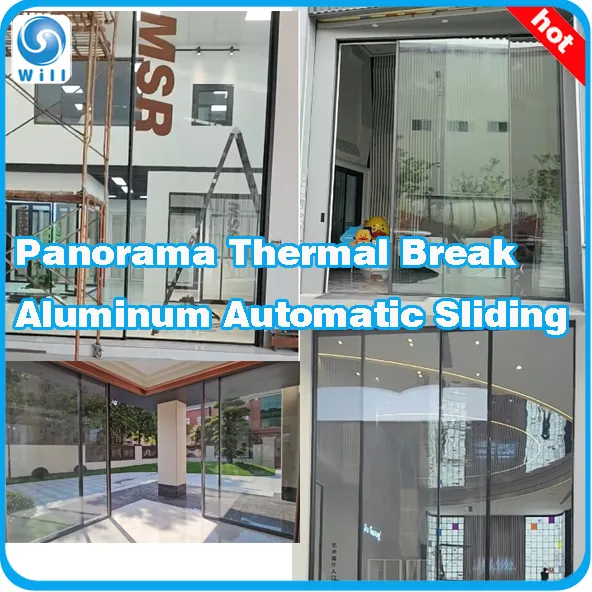

Automatic Door 8

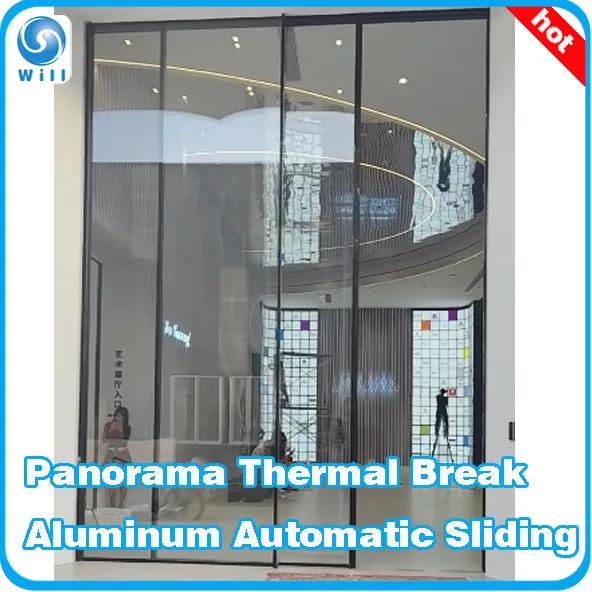

Automatic Door 9

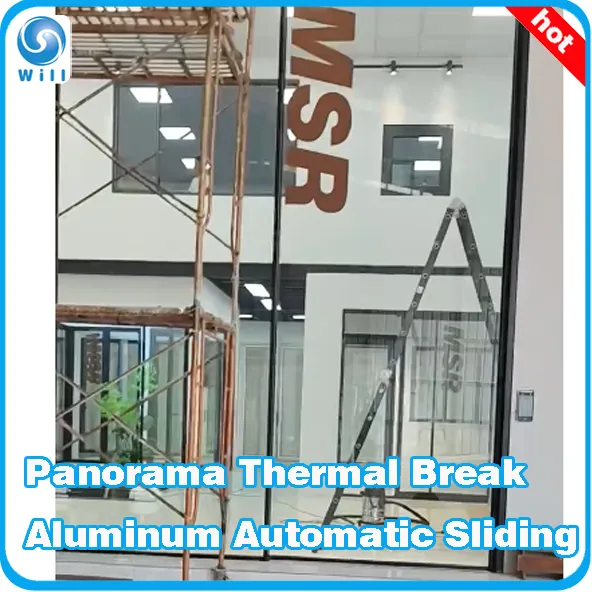

Automatic Door 10

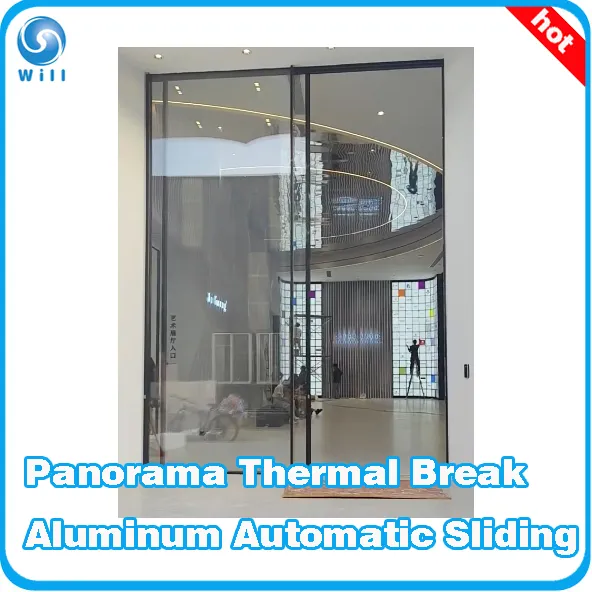

Automatic Door 11

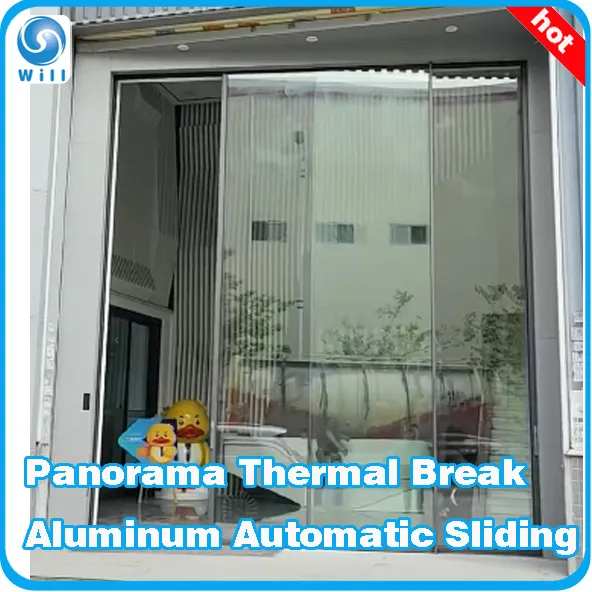

Automatic Door 12

Key Features

  • Function 95% similar as KABA and works with original KABA
  • Brush Motor or Dunker Motor 99.5W, powerful for 2X160KG gates
  • Easy install: Drive system pre-installed before factory leave
  • Germany Dunkermotor, CE approved
  • Low noise design (<40dB)
  • One million times of tests passed

Standard Configuration

  • Minidrive Unit & Transformer
  • Motor & Decoder
  • Basic control module
  • Track & Carrier
  • Return Pully & End stop
  • Service cover holder
  • Door bracket & Belt connection
  • Belt tensioning device

Technical Specifications (SLA60)

Weight of gateSingle/Bi-part 1X200KG / 2X120KG
Width of gateSingle/Bi-part 900-6100MM
Master Controller32 digital microprocessor
Motor TypeBrush motor/Dunker motor 99.5W 60VDC 2A IP50
Opening Speed300-700mm/s
Closing Speed300-650mm/s
Max Open Strength150N
Hold Open Time0-10S / 30s
Rail DimensionsHeight 8CM, Depth 16CM
Power SupplyAC110V-250V 50/60Hz
Temperature Range-15°C to +70°C
Protection DegreeIP23

Emergency & Safety Functions

  • Emergency opening in case of power failure / Fail-safe
  • Obstacle detection with automatic return mechanism
  • Self monitoring light barriers
  • Slow speed search for obstruction
Technical Drawing 1
Technical Drawing 2
Technical Drawing 3
Technical Drawing 4
Application 1
Application 2
Application 3

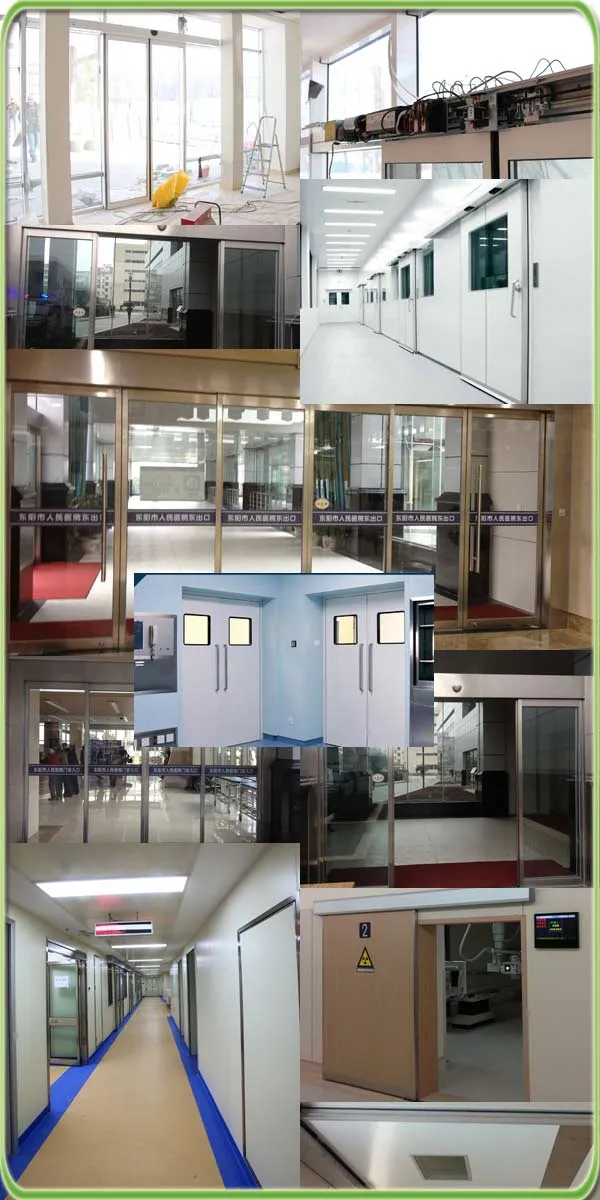

Application 4

Frequently Asked Questions

What are the main advantages of the SLA60 automatic door?
The SLA60 features a low noise design (<40dB), passed one million cycle tests, and uses high-quality Germany Dunkermotoren for reliable operation.
Is the motor powerful enough for heavy glass doors?
Yes, it uses a 99.5W motor capable of supporting single gates up to 200KG or bi-parting gates up to 2X160KG.
What happens in case of a power failure?
The system includes an emergency opening function and a fail-safe mechanism to ensure safety during power outages.
How difficult is the installation process?
Installation is simplified because the drive system is pre-installed before leaving the factory, reducing setup time on-site.
Does this door provide sound insulation?
Yes, the automatic panorama thermal break aluminum door is specifically designed with soundproof functions for room positioning.
What is the warranty period for this product?
The product comes with an 18-month warranty, covering the high-performance drive and motor components.
