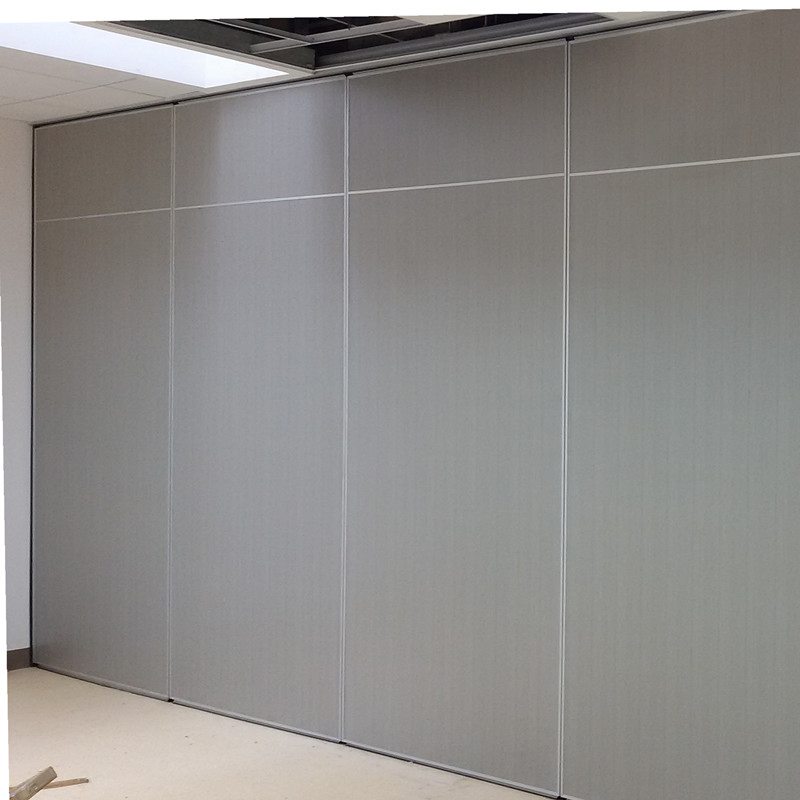

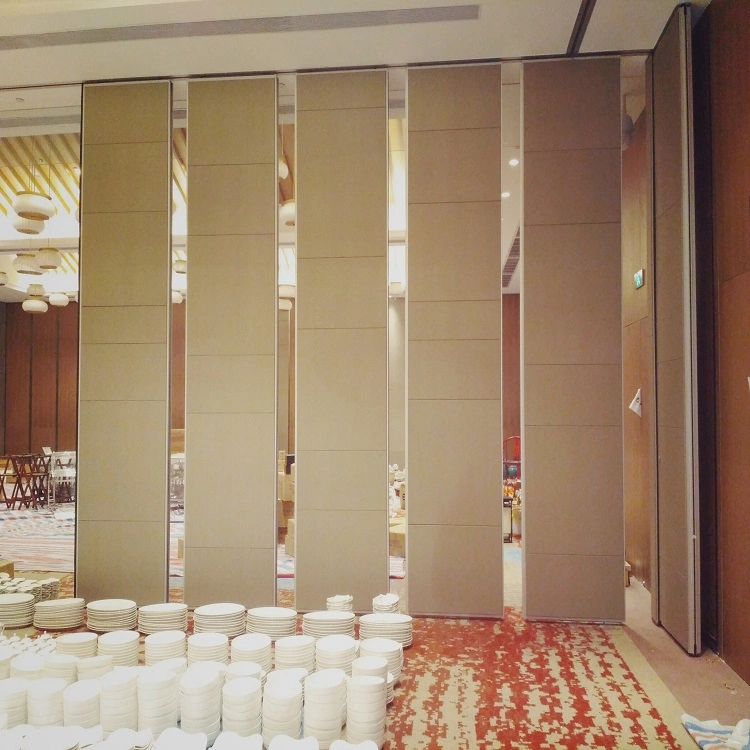

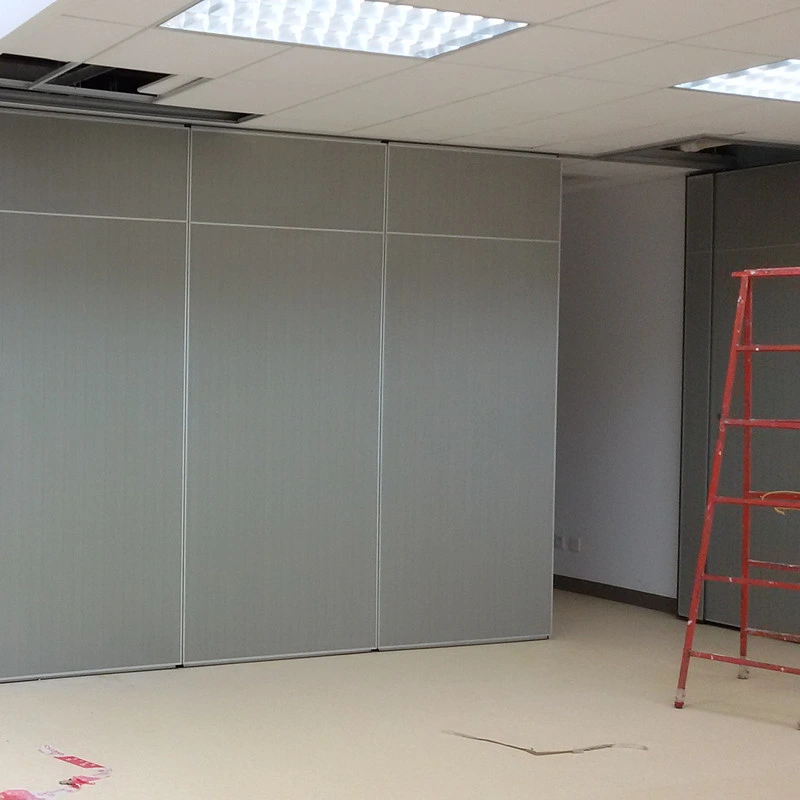

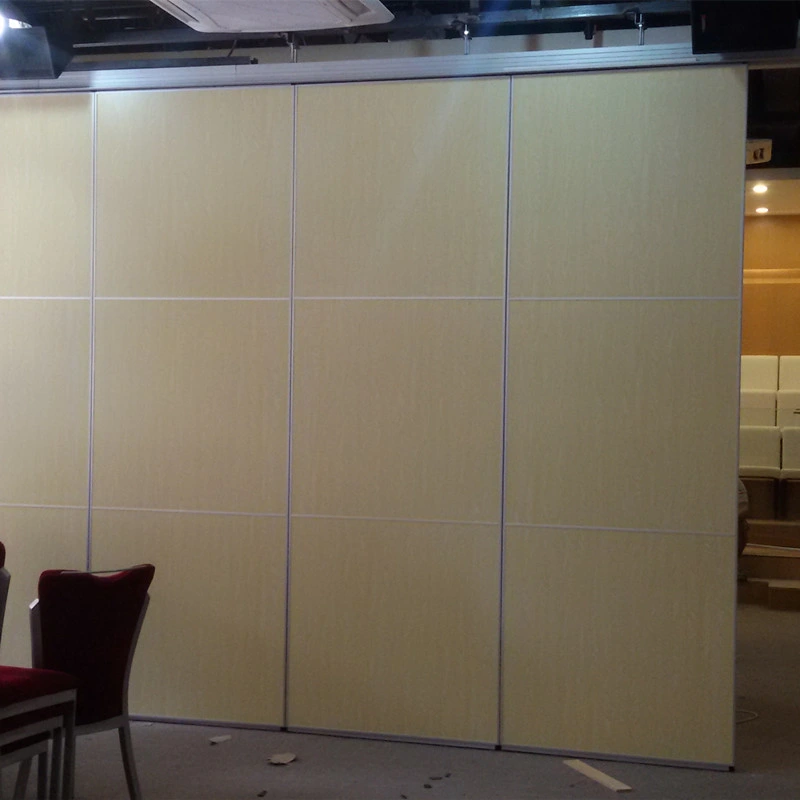

Acoustic Operable Soundproof Folding Partition Door for Conference Room

Basic Specifications

Model NO.

65 partition wall

Customized

Available

Material

Wooden

Condition

New

Product Name

Partition Wall

Advantage

Movable, Sliding, Folding

Usage

Office, Banquet Hall, School

Drawing

Free Service

Sample

Free Provided

Specification

Thickness: 65mm

Origin

China

Capacity

5000 Square Meter Per Month

Product Overview

Acoustic Operable Soundproof Folding Partition Door For Conference Room

Core Advantages

01 No Floor Track
No ground track required, preserving your floor decoration.

02 Stable and Firm
Independent fixing for each partition ensures stability.

03 Sound Insulation
Coefficient can reach above 50 dB for high privacy.

04 Energy Saving
Excellent heat insulation performance by dividing spaces.

05 Fire Prevention
Built with efficient fireproof materials.

06 Convenient Storage
Panels can be concealed in a dedicated storage area.

Technical Specifications

Series	BG65	BG85	BG100
Panel Suspension	Top hung only	Top hung only	Top hung only
Panel Thickness	65mm	85mm	100mm
Max Height	4000mm	6000mm	18000mm
Panel Width	500-1200mm	500-1200mm	500-1200mm
Face Material	9mm	9mm	12mm
Passdoors	Single door or Double door
Sound Insulation	28-38dB Rw	28-42dB Rw	32-50dB Rw
Finish Material	Plywood, MDF, Laminate, Melamine, Fabric, Leather, Fireproof board, etc.

System Features

Pass Door System: Automatic sealing mechanism. Movable screens pop up and put away automatically through a transmission system for seamless sound insulation.

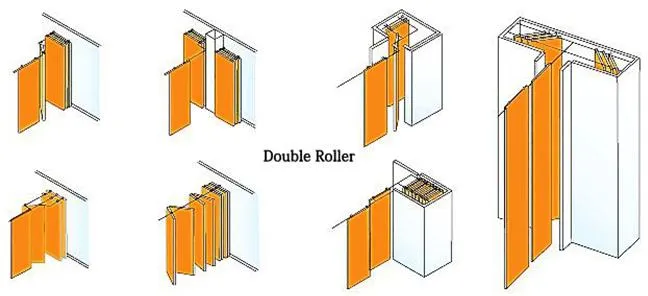

Parking System: Partition walls can be concealed in special storage tracks, maintaining the aesthetic of the room when not in use.

Packing & Service

✔ Factory direct price and nice quality

✔ Quick shipping within 5-10 days

✔ Small orders welcome

✔ More than 3 years warranty

✔ Support OEM & ODM customized designs

Frequently Asked Questions

What should be prepared on site?

A beam (truss) should be built for track installation. The minimum distance from false ceiling to top ceiling is 180mm.

How to handle the installation?

We provide an installation manual and video guides. Engineering supervision is also available upon request.

What is the standard lead time?

The typical lead time ranges from 7 to 10 days.

What are the transportation options?

Sea transport is the most common mode. Air freight can be used for emergency requirements.

How are the goods packed?

We use carton paper packaging with MDF batten covers for all corners to ensure safety during transit.

What is the procurement procedure?

First, provide shop drawings or site dimensions (height and width). Second, we offer a layout drawing for confirmation. Third, we provide a final quote based on the confirmed design.
